TECHNICAL SPECIFICATIONS

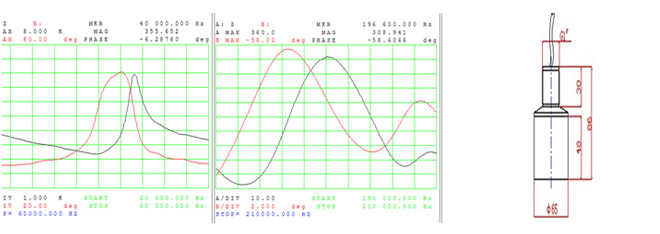

Resonant frequency	40KHz ± 1KHz
Impedance	600Ω ± 30%(in water)
Vertical directivity pattern	40KHz : 15°C
	200KHz : 5°C
Operating depth	＞200m
Operating temperature range	-20°C ~ 70°C
Cable	Red : transducer psitive electrode
	Black : transducer cathode
	Blue and Green : temperature sensor
	Yellow, White : outer covering shield
Weight (air) incl. cable	1.17kg
